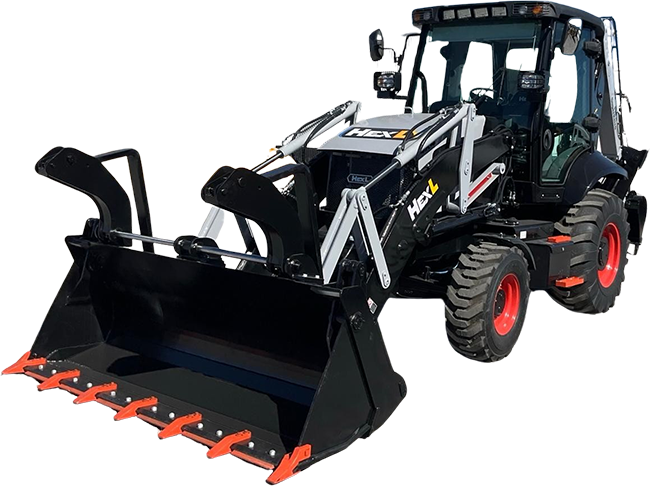

420x SuperBackhoe

420x SuperRetro

The 9-Ton Backhoe That Digs, Loads, and Maneuvers Like a Champ

  • 9,250 Kgs
    Operating Weight
  • 1.2m³
    Bucket Capacity(m3)
  • 102HP/75kW
    Total power(kw)

Overview

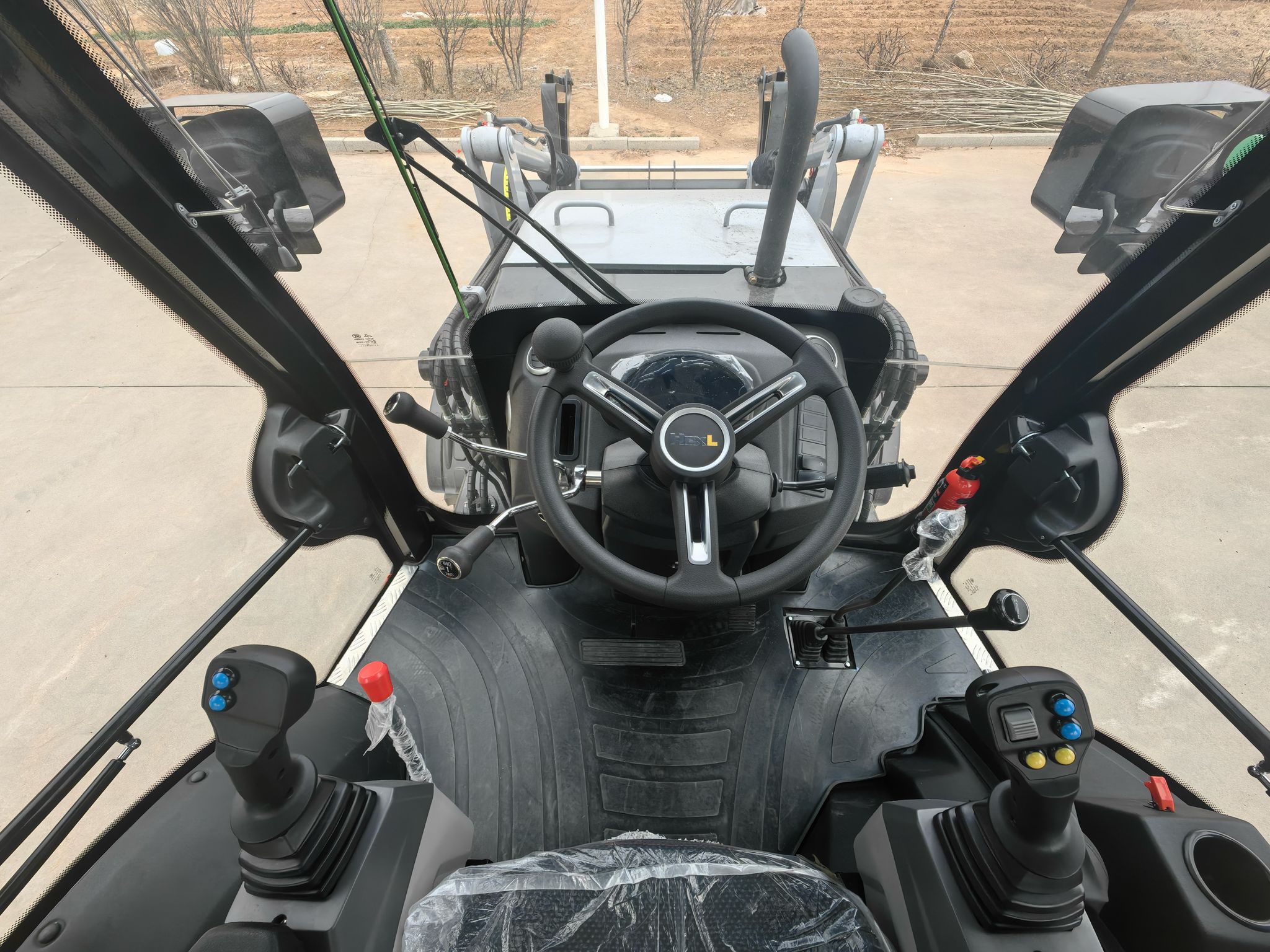

Panoramic windows provide exceptional visibility of the work area, minimizing blind spots and allowing you to precisely maneuver the machine during any digging, lifting, or loading task.

Engine Details

Engine : Cummins

Power : 102Hp/75Kw

Max Torque : 330Nm@1500rpm

GearBox : 315Y

Dimensions

Dimensions : 8000 x 2406 x 3040mm

Rated Load : 2500 Kgs

Operating Weight : 9250 Kgs

Digging Capabilities

Max Rear Arm Digging Depth : 4128mm (telescopic arm extended)

Max Rear Arm Digging Force : 1586KG

Max Rear Arm Height : 6226mm (telescopic arm extended)

Loading & Breakout Forces

Max Loading Height : 3905mm

Max Front Bucket Breakout Force : 47KN

Max Loading Front Arm Breakout Force : 47KN

Max Rear Bucket Breakout Force : 52KN

Max Rear Arm Breakout Force : 57.9KN

Hydraulic System

Hydraulic Pump : variable piston pump, Le-Hydraulix

Multiway Valve : Le-Hydraulix

Main Pump Flow : 160L/min

Max Pressure : 26Mpa

Auxiliary Pump Flow : 50L/min

Bucket Details

Bucket Capacity : 1.2m³

Take a Full Look

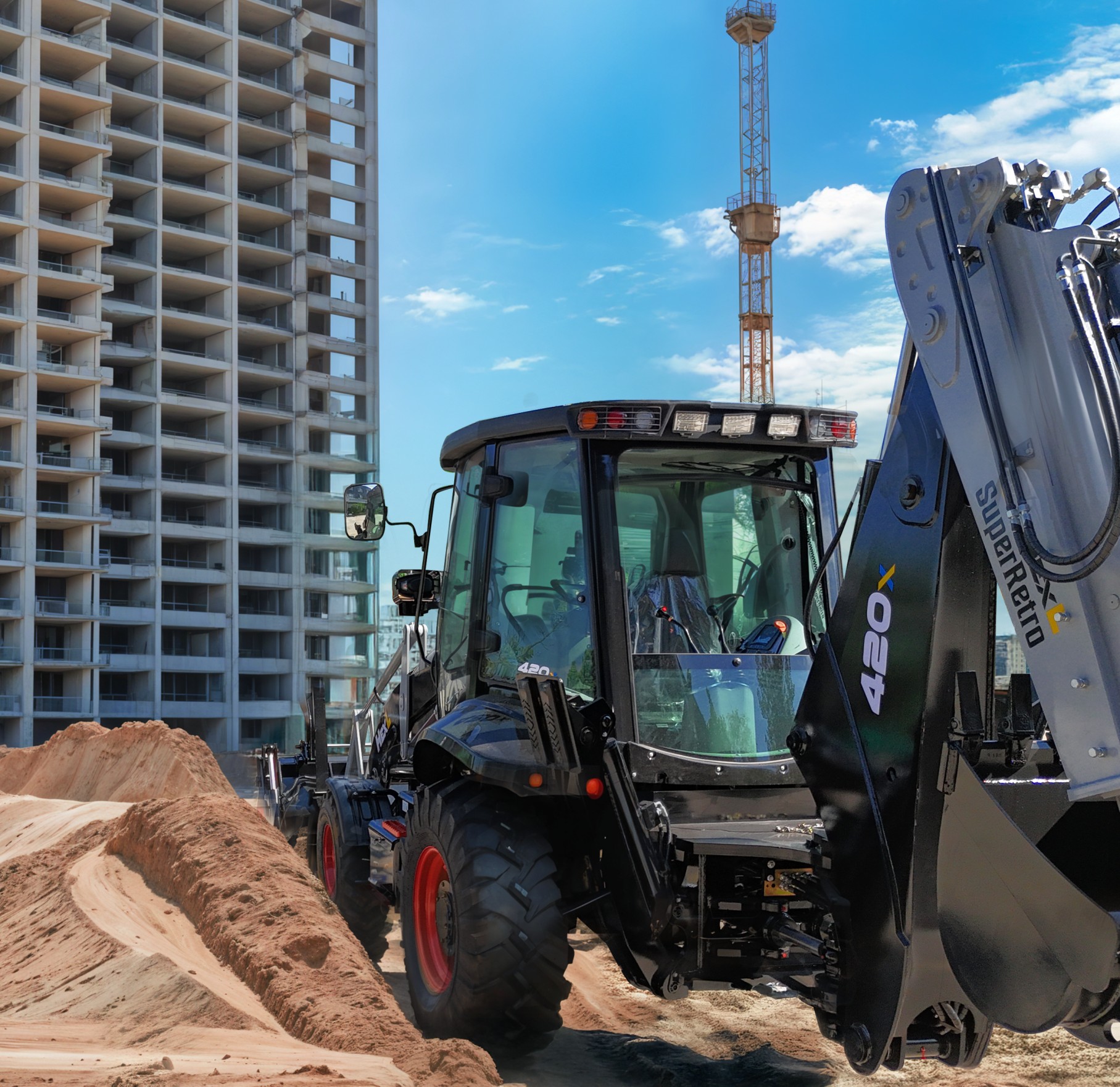

Construction & Building Sites

Conquer challenging urban and infrastructure projects with superior maneuverability, powerful hydraulics, and durable components. Accelerate construction timelines with efficient material handling, rapid cycle times, and reliable performance.

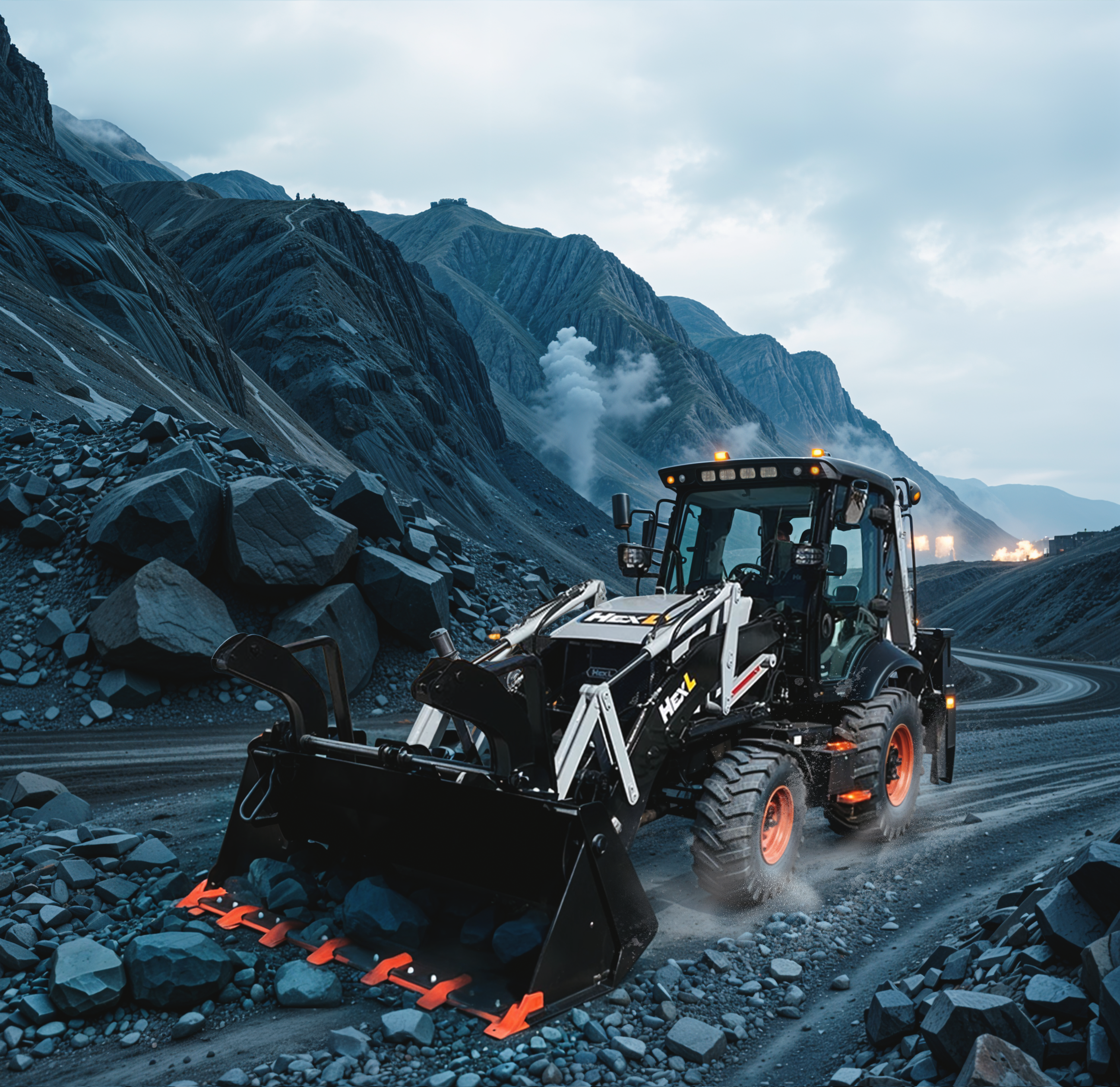

Energy & Mining

Maximize productivity and minimize downtime in harsh mining environments with rugged durability and powerful performance.

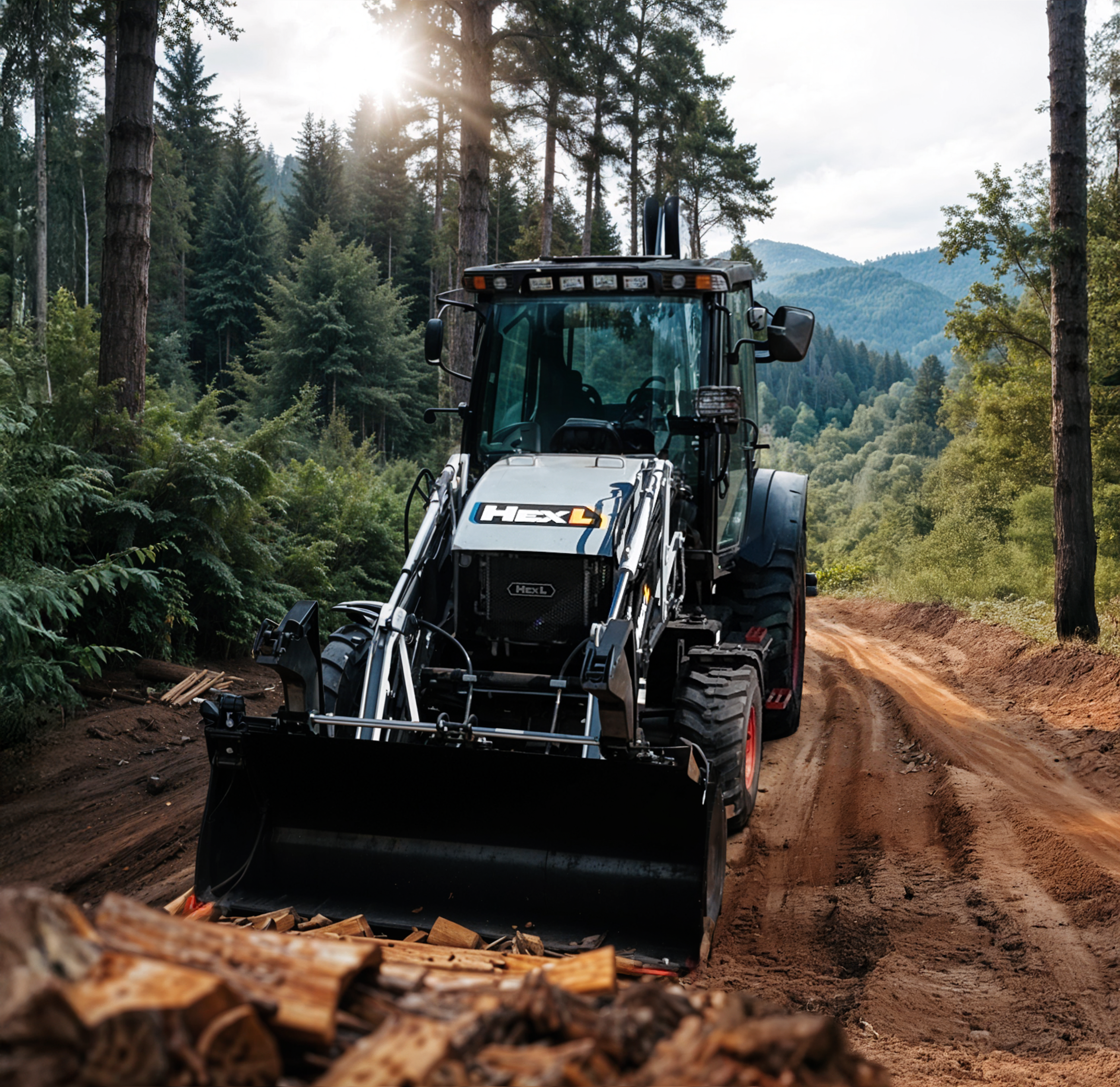

Forestry

Tackle challenging forestry tasks with ease, thanks to specialized attachments and powerful hydraulics.

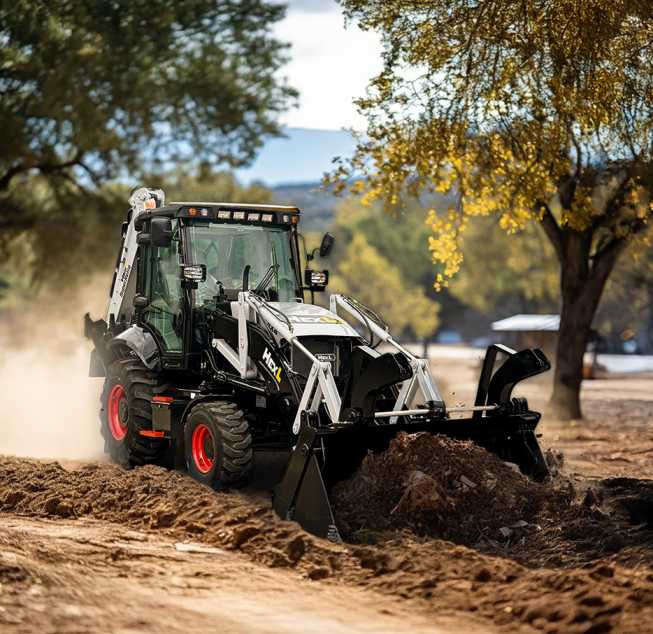

Farm and Agriculture

From land preparation and material handling to general farm maintenance, our machines are designed to tackle a wide range of agricultural tasks with ease and precision.

Optional Attachment

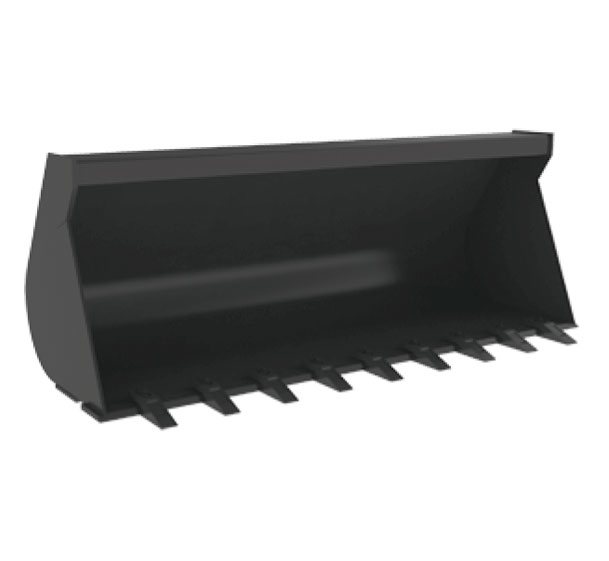

Front Larger Bucket

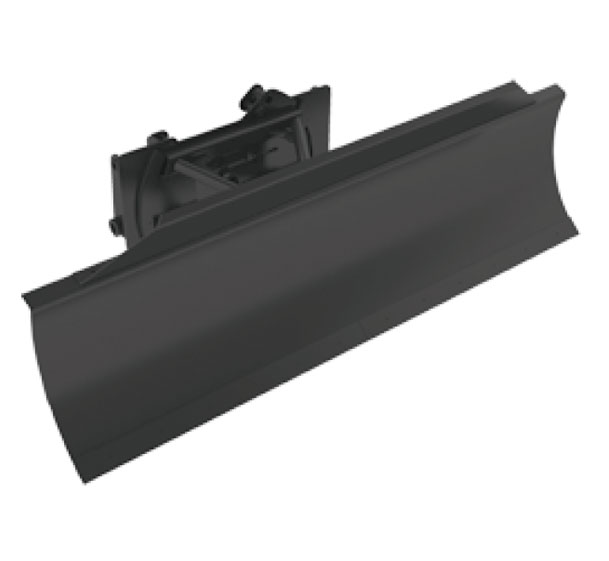

Dozing Blade
6 in 1 Bucket with Auger

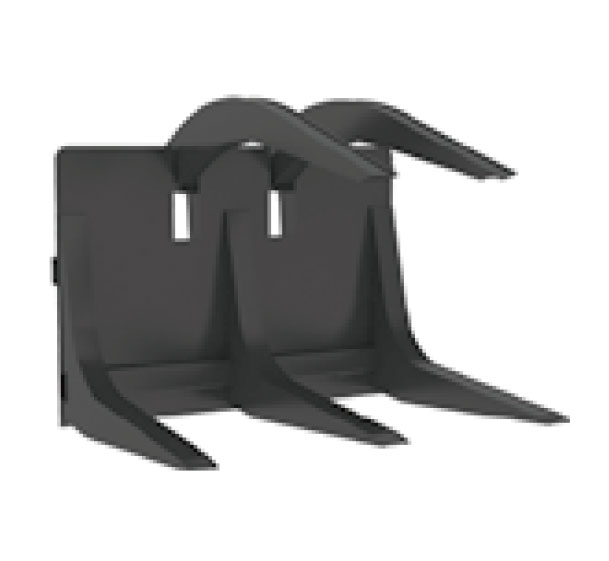

Log Grappler

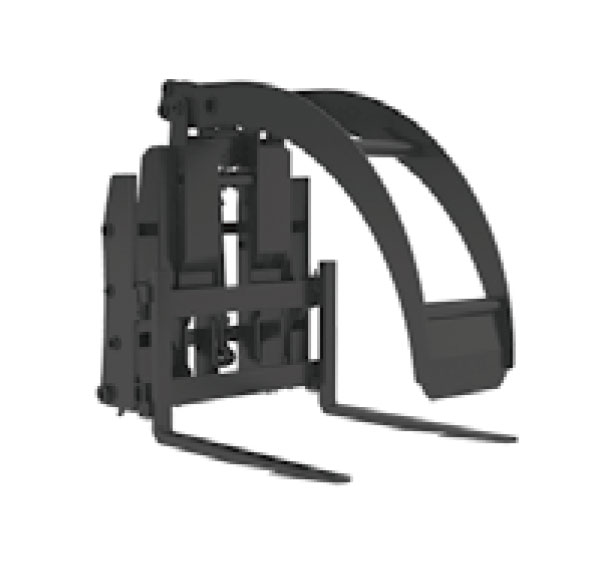

A Type Log Grappler
Pallet Fork
Rear Larger Bucket
Hammer

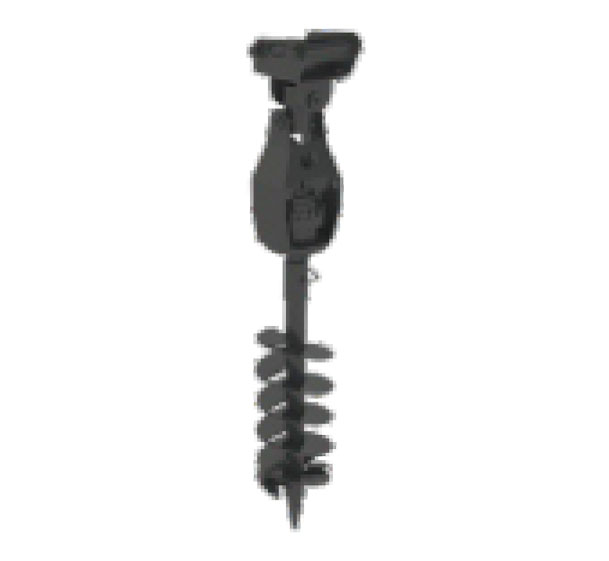

Auger
Rear Claw Grappler

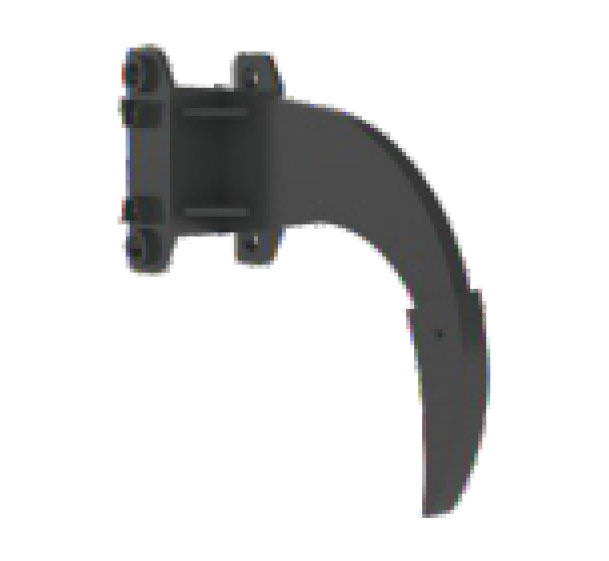

Rear Ripper

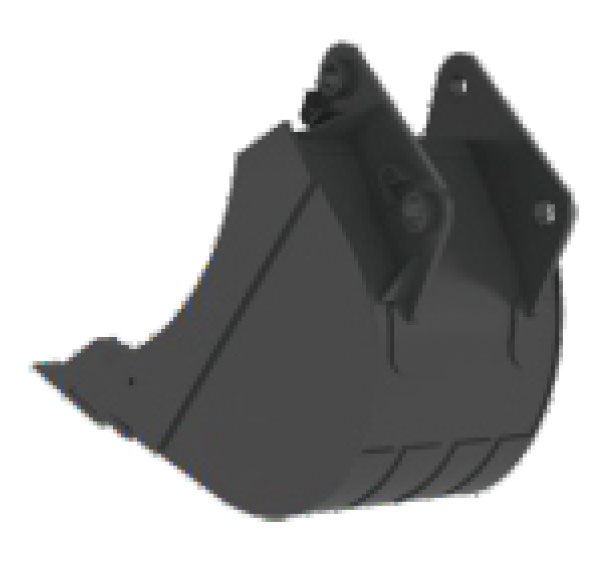

Trench Bucket
